Product Specifications
Painted glass features a durable baked paint finish created through high-temperature curing processes. This decorative glass solution is widely used in architectural facades, interior design, furniture, and appliance applications.
Key Specifications
1Material Properties
- Available in float glass or tempered glass substrates
- Standard thickness: 3mm, 5mm, 6mm, 8mm, 10mm (custom 2-19mm available)
- Max standard size: 2440 × 3660mm
- 200+ standard RAL/PANTONE colors & custom matching
2Paint Performance
- Film thickness: 30-50 microns
- Hardness: 3H-6H pencil hardness
- Adhesion: Grade 0 cross-cut test result
- Weather resistance: No fading after 3000 hours QUV testing
- Chemical resistance: Stable in 5% HCl/NaOH for 24 hours
3Physical Characteristics
- Light transmission: ≤5% (solid), 30-80% (translucent)
- Reflectance: 85-92% (glossy) / 20-40% (matte)
- Temperature tolerance: -30°C to 120°C
- Fire safety: Class A2 (EN13501-1)
4Surface Finish Options
- High-gloss (90°+ gloss level)
- Matte (15-30° soft light effect)
- Metallic finishes with metal powder additives

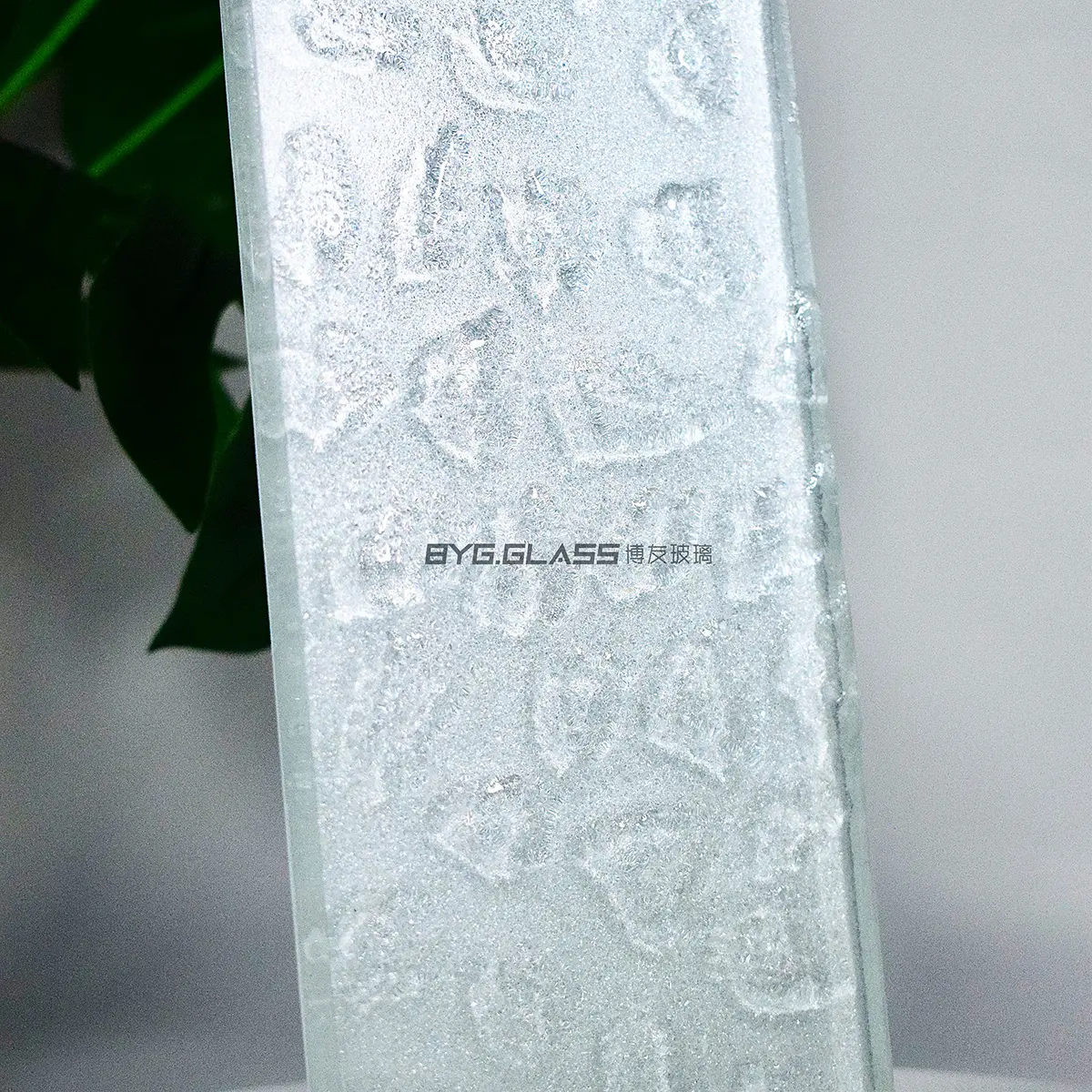

- Stone texture patterns (3D printing transfer)
Recommended Applications
- Building Facades: 6-8mm tempered painted glass with metallic finishes.
- Interior Partitions: 5-6mm matte panels with 30-50% light transmission.
- Kitchen & Bathroom: 8mm moisture-resistant glass with easy-clean coatings.
- Commercial Displays: 3-5mm high-gloss panels in custom corporate colors.
Certifications & Compliance
Meets GB15763.2 (China), EN12150 (EU architectural), ANSI Z97.1 (US safety performance), and is RoHS and REACH environmental compliant.
Custom Options Available:
Anti-fingerprint treatments | Antibacterial coatings | Anti-glare surface finishes | Tailored solutions based on project requirements.
Frequently Asked Questions
Q: Can painted glass be used outdoors?
A: Yes, but it must use weather-resistant paint with UV inhibitors. The estimated service life for outdoor applications is 5-8 years.
Q: How do you repair surface scratches?
A: Minor surface scratches can typically be polished out. However, deep damage to the paint layer requires professional repainting.
Q: What are the installation precautions for these panels?
A: Installation requires 3-5mm expansion gaps and the use of specialized glass adhesives to ensure long-term stability.
Q: What is the fire safety rating of this glass?
A: Our painted glass holds a Class A2 fire safety rating according to EN13501-1 standards.
Q: Is custom color matching available?
A: Yes, we offer a full RAL/PANTONE color spectrum with over 200 standard colors and full custom color matching services.
Q: What thicknesses are available for architectural use?
A: Standard thicknesses are 3mm, 5mm, 6mm, 8mm, and 10mm, with custom sizes ranging from 2mm to 19mm available upon request.
